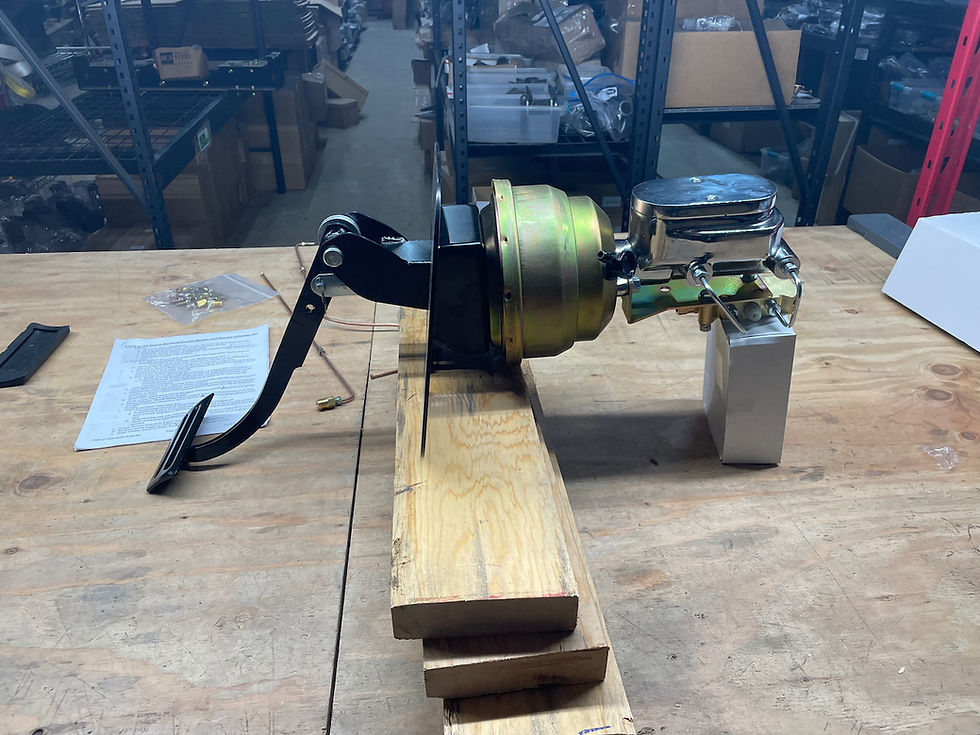

This is a complete bolt in kit that uses a modern power booster and dual circuit master cylinder mounted to the firewall using the factory firewall access plate opening. It includes a new brake pedal that swings from a higher location (looks like it could be original too). This modern GM booster and master cylinder give a significantly improved braking feel and power while adding safety through the dual circuit system.

This can be used with factory drums, disc/ drum or disc/ disc. Select what brakes you have at checkout and I will send the correct proportioning valve.

It will have the pedal feel of a modern car- minimal effort required with a positive and firm feel. No more soft or sloppy pedal!

Installation is fairly straightforward- no cutting required, this kit doesn't involve anything permanent that can't be undone in a couple hours! You have to remove the driver side firewall access plate, master cylinder, and then this kit bolts in.

Two brake lines are included although the included lines will require some finesse by the installer. One goes from rear proportioning valve to the original junction block mounted to the driver side frame rail in place of the line that originally lead to the front brakes.  The other brake line goes from the front of the new proportioning valve to the factory T junction block located near the front driver side wheel and feeds the front brakes. Installation time is about 4 to 6 hours.

This ONLY works on 1951 to 1953 Buicks Special and Century models, NOT the larger Roadmaster model.

This kit comes with everything including proportioning valve, brake lines, and hardware! All you need is brake fluid and a port on your intake to plug into vacuum.



Included Parts:
Firewall box
Brake pedal bracket
Brake pedal W/ clevis pin, bushings and rubber pad
GM style brake booster
GM style master cylinder
All new high quality bolts
2X 3/16" brake lines- custom cut, bent, and flared
Proportioning Valve w/ mount bracket and metal lines (mounts beneath MC, pictured)
3/8 Vacuum hose
Misc. hardware


All metal parts are CAD designed, laser cut, formed on a computer controlled press brake, professionally tig welded, and powdercoated satin black for consistent high quality results.
